TF86DC 86L/3.0 Cu. Ft. 12 V Refrigerator with Freezer

The TF86DC is a free-standing, 12VDC only fridge, has been designed to fit a variety of different installations from custom installs to installation into the 2018+ P4 NEW Cascadia trucks with the cabinet delete option, Peterbilt 387 with a 15" wide cabinet, Peterbilt 63” bunk without the closet door, and Volvo 780 and 880 models. The TF86DC includes TF86FK front mounting installation flange kit used to secure the TF86DC into the cabinet opening. The TF86DC refrigerator offers 3.0 cu foot of storage for your food, drinks and frozen items and has the largest freezer offered in our built-in fridge product line. The TF86DC comes equipped with the SECOP BD 1.4F Micro VSD compressor for excellent performance and reduced weight.



For installation in the 2018+ (CA126) P4 Cascadia trucks, the fridge fits perfectly on the mounting pad behind the passenger seat and is held in place with the straps provided in trucks with the cabinet delete option. NOTE: An optional P4 Wiring Kit (CPLUG) is available on the “12V Truck/Van Fridge Accessories” page and may be necessary for installation in your Cascadia truck depending on where a 12V outlet is located.

• Built-in, silent, highly efficient, fan cooled 12vDC SECOP BD1.4F VSD Micro compressor.
• No power inverter necessary! Connects to the 12v factory fridge wiring.
• Connection to a cigarette lighter plug is NOT recommended.
• Proven design as used in many OEM trucks.
• Solid mounting prevents part movement for quiet operation.
• Built-in low voltage cut-out and overvoltage protection.
• Insulation is high density, CFC-free polyurethane foam.
• Fridge liner is made from thermoformed plastic for easy clean up.

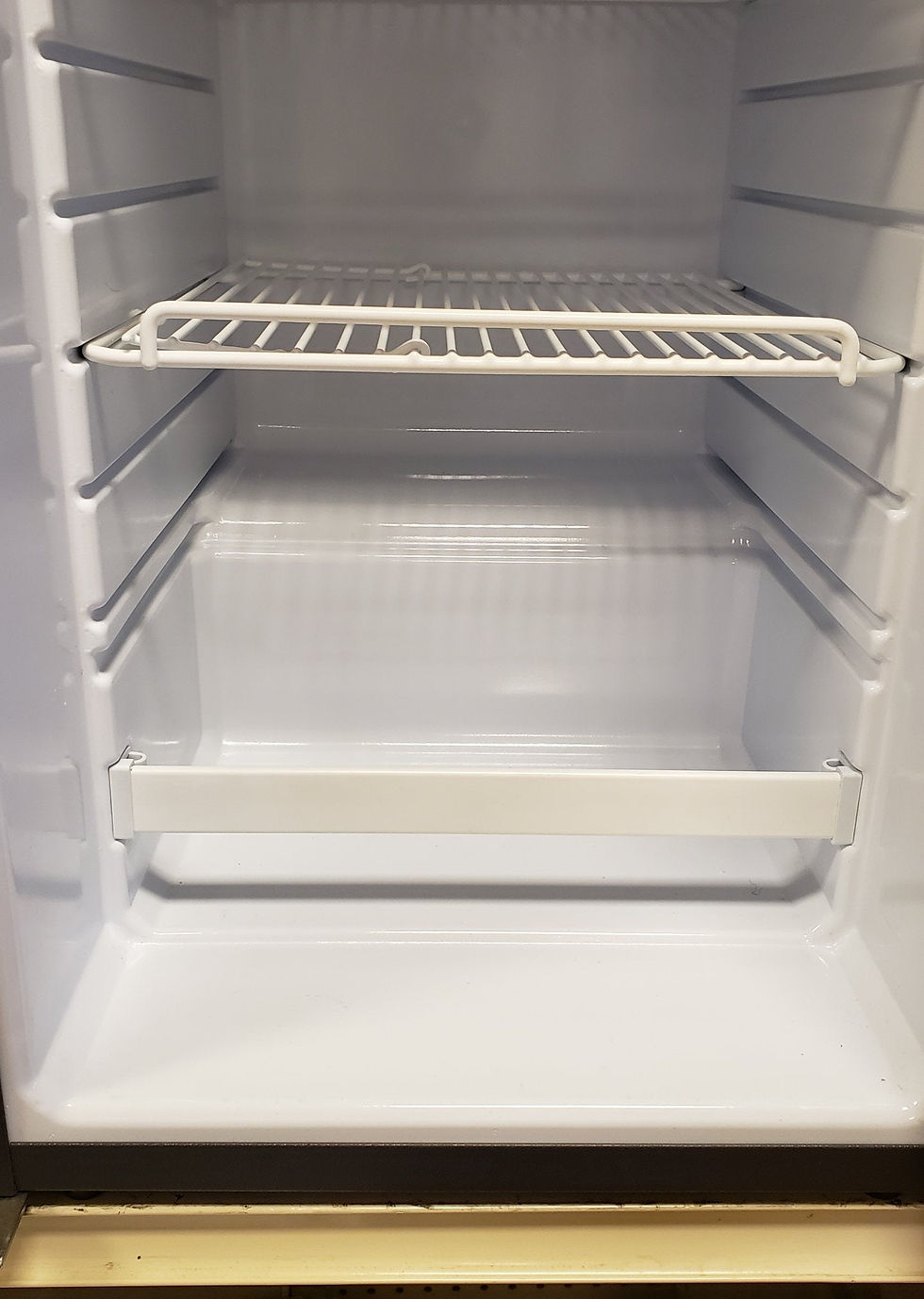

• Adjustable thermostat, (2) wire shelf, (3) door shelf
• Interior light
• Built-in self diagnostics
• Replaceable black door panel and reversible door hinge location.
• Door latch provides positive closure.
• Interior LED light.
• Adjustable electromechanical temperature control.
• Forced air cooled static wire condenser for optimal performance.
• Average consumption: 40 amps/24hrs (2 Amp/Hrs) at 75° F ambient with an internal temperature of 36° F.
• Weight: 62 lbs
• 2 Year Warranty

Truck Fridge

The TF86DC is a 12-24 VDC only Refrigerator with Freezer and is designed for installations including most 2018 New P4 Freightliner Cascadia without cabinet *, 63" bunk Peterbilt with no door and Volvo** 780/880 models.

Notes:

* Freightliner NEW P4 Cascadia installation: TF86DC mounts directly onto either the 17.5" or 24" base plates behind passenger seat using OEM supplied straps.

** Volvo 780/880: TF86DC has the same height and depth as the OEM Volvo fridge however is slightly narrower leaving a gap on the left side of the fridge due to the curved cabinet.

Model	TF86DC
Fridge with Freezer	15"W x 34"H x 21"D
Fridge (Main)	12.5"W x 14.25"H x 17"D
Fridge (Lower/Step)	12.5"W x 5.25"H x 10.75"D
Freezer	9.5"W x 8.75"H x 17"D
Total Capacity	86 litre / 3.01 cu. ft.
Fridge (Upper/Lower)	63 Liter / 2.2
Freezer	23 Liter / .81
Nominal voltage	12-24 VDC
Nominal input power	60 watt/hour (5 amp/hour)
Average power consumption	45 Amps/24h. (1.9 amp/hour)
In-line fuse	15A (12 VDC), 7.5A (24 VDC)
Refrigerant	R134a
Temperature Range	+2oC to -7oC (35oF to 18oF)
Ambient Temperature	Indel B Italy claims test to show that unit can maintain food safe temperatures (34-40F / 1-5C) at ambient temperatures up to 120F / 49C.
Air cooling	Forced with fan
EMC conformity	Yes
Standard Features	Interior light, adjustable thermostat, (2)wire shelves, (3) door shelves and low voltage cut-out.
Net weight (lbs)	55 lbs
Warranty	Two (2) year parts and labour

Note. If in doubt about the model for your truck, always confirm by measuring the height, width and depth of the cabinet opening before ordering. Please note that models, prices, and availability is subject to change without obligation or notice.
