Description
The high quality components used in the production of the CR65CASR result in low power consumption (will not kill your batteries) and higher quality than most OEM refrigerators. The CR65CASR is Built tough ... Built to last ... and comes with a two year warranty. The CR65CASR uses the world famous Danfoss/Secop compressor for unsurpassed reliability, durability and performance.

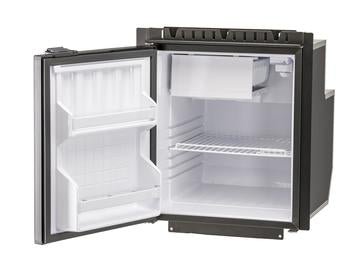

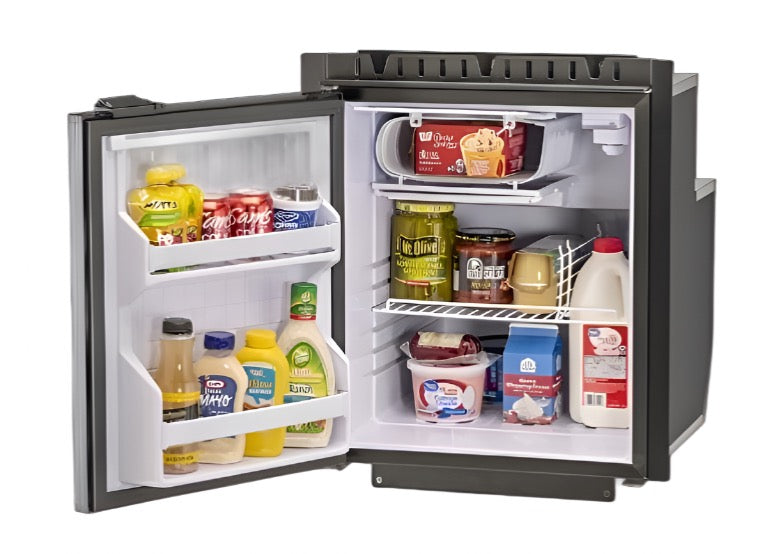

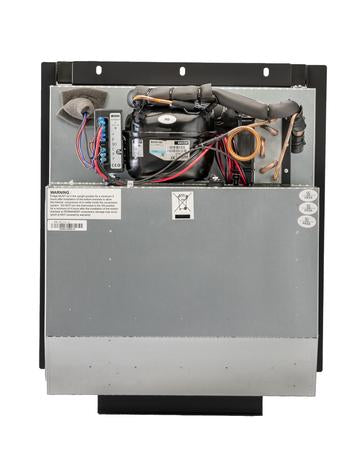

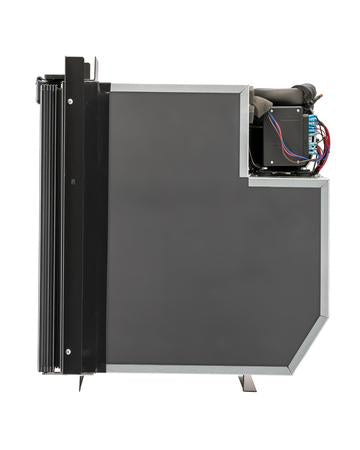

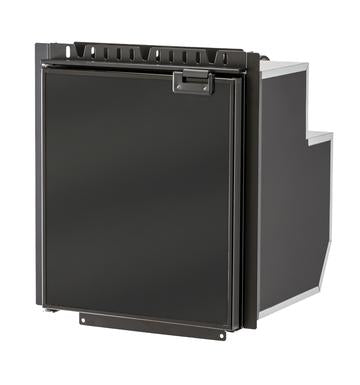

The refrigerator holds bottles in vertical and horizontal positions. The fan-cooled compressor unit is integrated on the upper part of the refrigerator. Installation frame, adjustable thermostat and interior light are all standard features.
Other Truckfridge models include;
CR49DC (12-24VDC)
CR49ACDC (12-24VDC, 110-220VAC)
TFDR49DC-BL (12-24VDC)
CR65DC (12-24VDC)
CR65ACDC (12-24VDC, 110-220VAC)
CR86DC (12-24VDC)
CR130DC (12-24VDC)
CR130ACDC (12-24VDC, 110-220VAC)
Product Features
- TRUE 12Vdc highly efficient Danfoss/Secop 12VDC compressor type refrigerator w/freezer for superior performance.
- Forced air fin and tube condenser for optimal performance.
- Proven design as used in many OEM trucks.
- Super quiet operation.
- Average consumption: 40 amps/24hrs at 75° F ambient with an internal temperature of 36° F.
- Will not kill your batteries (three level battery protection).
- Installation frame, adjustable thermostat and interior light standard.
- Easy Fit System standard.
- Replaceable texitured matt black front door panel.
- Reversible door opening
- Insulation is high density, CFC-free polyurethane foam.
- Fridge liner is made from thermoformed plastic for easy clean up.
- Upgraded interior freezer surround and door.
Application
Shore Power (110VAC)
The use of shore power eliminates the need for generators, solar power or running the vehicles engine to recharge the auxiliary deep cycle battery during long stop overs..
CR65CASR can alternatively be used in shore power applications where 110VAC power is available. Simply add a 12V battery charger always connected to the deep cycle battery. You can plug and unplug the battery charger without affecting the fridge. This is also a very cost effective alternative.
Truck Fridges
The CR65CASR is designed to replace a failed Freightliner OEM (PN: A22-78699-000) fridge in the 2018+( CA126-P4) NEW model Cascadia trucks. This refrigerator can only be installed in the new Cascadia model truck that has a factory cabinet and the OEM cabinet door cannot be reused. (Cabinet opening should measure approximately 17 3/4” wide).
Specification
Model |
CR65CAS-R |
| Size (inches) | 20.5"(H) x 17 3/4"(W) x 18 1/2"(D) |
| Gross capacity | 65 litre / 2.3 cu. ft. |
| Nominal voltage | 12-24 VDC |
| Nominal input power | 60 watt/hour (5 amp/hour) |
| Average power consumption | 360 watts/24 hour 40 amps/24 hour (2 amps/hr) |
| In-Line Fuse | 15A(12VDC), 7.5A(24VDC) |
| Refrigerant | R134a |
| Temperature Range | +2C to -7C (35F to 18F) |
| Ambient Temperature | Indel B Italy claims test to show that unit can maintain food safe temperatures (34-40F / 1-5C) at ambient temperatures up to 120F / 49C. |
| Air cooling | Forced with fan |
| EMC conformity | Yes |
| Features |
Interior light, installation frame, easy fit system, adjustable electromechanical thermostat, built-in low voltage cut-out and overvoltage protection. |
| Net weight (lbs) | 44 lbs |
| Warranty | Two (2) year parts and labour |
Note. If in doubt about the model for your truck, always confirm by measuring the height, width and depth of the cabinet opening in your truck.
Please note that models, prices, and availability is subject to change without obligation or notice.
