Truckfridge™ TF36DC
Description

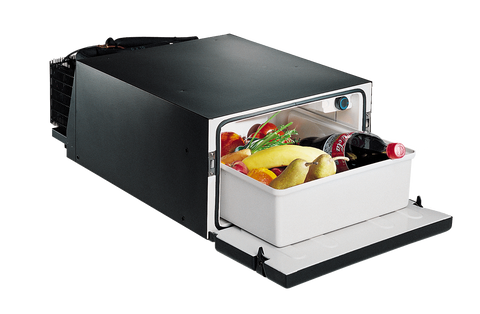

The TF36DC is a TRUE 12-24 Vdc compressor refrigerator only (no freezer) designed to fit under the bunk in the sleeping compartment. This sliding drawer arrangement then gives the driver access to the contents without losing valuable space in the cab. Note. This is a 12-24Vdc fridge only and does not have a freezer.
The high quality components used in the production of the TF36DC result in low power consumption (will not kill your batteries) and higher quality than most OEM refrigerators. The TF36DC is built tough ... built to last ... and comes with a unconditional two year warranty and uses the world famous Danfoss/Secop compressor for unsurpassed reliability, durability, performance and low noise.
Other TruckFridge models include:
TF49DC (12-24VDC)
TF49ACDC (12-24VDC, 110-220VAC)
TFDR49DC-BL (12-24VDC)
TFDR49DC-SS (12-24VDC)
TF65DC (12-24VDC)
TF65ACDC (12-24VDC, 110-220VAC)
TF86DC (12-24VDC)
TF130DC (12-24VDC, 110-220VAC)
TF130ACDC (12-24VDC, 110-220VAC)
Product Features
- TRUE 12Vdc compressor type refrigerator for superior performance
- High efficiency Danfoss/Secop compressor minimizes power consumption
- Average power consumption under 2 amp/hour
- Super quiet operation.
- Will not kill your batteries (low voltage cut-out)
- Perfect for custom under bunk sleeper installations.
- Sliding drawer for easy driver access
- Cooling system includes tilt cab protection.
- Manual thermostat
- Pull-out inner basket.
- Fridge ONLY, no freezer.
Application
Shore Power (110VAC)
The use of shore power eliminates the need for generators, solar power or running the vehicles engine to recharge the auxiliary deep cycle battery during long stop overs..
TF36DC can alternatively be used in shore power applications where 110VAC power is available. Simply add a 12V battery charger always connected to the deep cycle battery. You can plug and unplug the battery charger without affecting the fridge. This is also a very cost effective alternative.
Truck Fridge
The TF36DC was originally designed for cab over trucks in Europe however can also be installed under the bunk in North American highway trucks with smaller sleeper cabs that do not have a built-in cabinet. The sliding drawer design allows the driver access to the contents without losing valuable space in the cab. (Cabinet opening should measure approximately 17 1/4” wide).
Optional TF36FK trim flange kit available to finish front opening of cabinet when installing the unit.
Van / RV Fridges
The TF36DC is also ideal for many RV and van applications.
Specification
Model |
TF36DC |
| Size (inches" | 9 3/4"h x 17 1/4"w x 28 1/2"d |
| Gross capacity | 35.5 litre / 1.25 cu. ft. |
| Nominal voltage | 12-24 VDC |
| Nominal input power | 60 watt/hour (5 amp/hour) |
| Average power consumption | 24 watts/hour (2 amp/hour) |
| Refrigerant | R134a |
| Temperature Range | +2C to -7C (35F to 18F) |
| Air cooling | Forced with fan |
| EMC conformity | Yes |
| Features |
Interior light, adjustable thermostat |
| Net weight (lbs) | 35 lbs |
| Warranty | Two (2) year parts & labour |
Note. If in doubt about the model for your truck, always confirm by measuring the height, width and depth of the cabinet opening before ordering.
Please note that models, prices, and availability is subject to change without obligation or notice.
