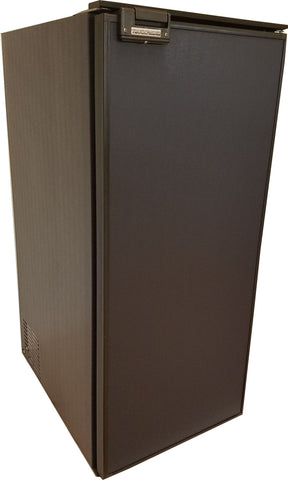

The TF86DC is a 12-24Vdc only refrigerator w/freezer that is designed for custom installations including most 2018+ New P4 Freightliner Cascadia without cabinet, Peterbilt 387 with a 15" wide cabinet and Volvo 780 and 880 models.
Note: Includes the TF86FK front mounting flange kit used to secure the TF86DC into the cabinet opening.
Do you want a cost effective larger fridge capacity?
The Peterbilt 63' bunk typically comes with 16" wide cabinets behind the driver and passenger seats that were ideally suited for the TF49DC (49 Liter) 12V fridge.
This is now no longer always the case, given that the new TF86DC dimensions are similar in size to the TF49 (49 Liter) except that it is much higher providing significantly more storage capacity (86 Liter) for the relatively small difference in cost.
(Note. Always confirm your available fridge opening dimensions and compare to dimensions stated on our website before ordering to ensure the correct model for your truck. The TF86DC is 15” wide x 34” high x 19” deep (22” depth allows for proper air ventilation) and connects directly to the 12VDC OEM PACCAR factory fridge wiring existing in most trucks using the optional PPlug Adapter Wire Harness if needed. See "12V Truck/Van Fridge Accessories" for details. CAUITION. Cigarette type receptacles and plugs not recommended and may not function adequately).
Other available TruckFridge models include;
- TRUE 12Vdc compressor type refrigerator w/freezer for superior performance.
- High efficiency Danfoss/Secop compressor minimizes power consumption.
- More economical larger storage capacity.
- Super quiet operation.
- Average power consumption under 2 amp/hour.
- Will not kill your batteries (three level battery protection).

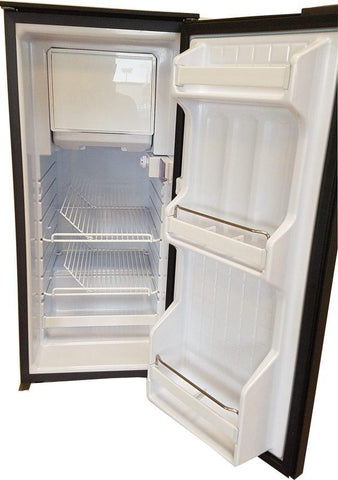

- Adjustable thermostat, (2) wire shelf, (3) door shelf and interior light standard.
- Built-in self diagnostics.

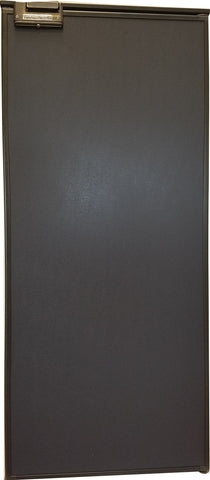

- Replaceable front door panel.
- Reversible door opening
The TF86DC is a 12-24Vdc only Refrigerator w/Freezer and is designed for custom installations including most 2018 New P4 Freightliner Cascadia without cabinet *, 63" bunk Peterbilt with no door and Volvo** 780/880 models.
* Freightliner NEW P4 Cascadia installation: TF86DC mounts directly onto either the 17.5" or 24" base plates behind passenger seat using OEM supplied straps.
** Volvo 780/880: TF86DC has the same height and depth as the OEM Volvo fridge however is slightly narrower leaving a gap on the left side of the fridge due to the curved cabinet. Note. TruckFridge will be providing both a Volvo installation kit and cosmetic finishing panel in the near future and may be re-installed at a later date.
|Outside Dimensions (inches)
|Fridge w/Freezer||15"W x 34"H x 22"D|
|Inside Dimensions (inches)|
|Fridge (Main)||12.5"W x 14.25"H x 17"D|
|Fridge (Lower/Step)||12.5"W x 5.25"H x 10.75"D|
|Freezer||9.5"W x 8.75"H x 17"D|
|Total Capacity||86 litre / 3.01 cu. ft.|
|Fridge (Upper/Lower)||63 Liter / 2.2|
|Freezer||23 Liter / .81|
|Nominal input power||60 watt/hour (5 amp/hour)|
|Average power consumption||45 Amps/24h. (1.9 amp/hour)|
|In-line fuse||15A (12VDC), 7.5A (24VDC)|
|Temperature Range||+2oC to -7oC (35oF to 18oF)|
|Ambient Temperature||Indel B Italy claims test to show that unit can maintain food safe temperatures (34-40F / 1-5C) at ambient temperatures up to 120F / 49C.|
|Air cooling||Forced with fan|
Interior light, adjustable thermostat, (2)wire shelves, (3) door shelves and low voltage cut-out.
|Net weight (lbs)||55 lbs|
|Warranty||Two (2) year parts and labour|
Note. If in doubt about the model for your truck, always confirm by measuring the height, width and depth of the cabinet opening before ordering.
Disclaimer for custom installations* As all good cabinet makers know, never make the first cut on cabinets until you have the appliances in front of you. Screw heads, hinges, and door swings must always be taken into account. Failure to observe this information may result in ill fitting installations or additional costs to you. This is not considered a manufacturing or TruckFridge issue. Specifications may be subject to change without notice or obligation.
