TFDR49DC-BL 49L/1.73 cu.ft 12V Refrigerator w/Freezer

  • Sale
  • Regular price $1,423.00


The TFDR49DC-BL is a TRUE 12-24VDC compressor refrigerator with a freezer.

The high-quality components used in the production of the TFDR49DC-BL result in low power consumption (will not kill your batteries) and higher quality than most OEM refrigerators. The TFDR49DC-BL is built tough ... built to last ... and comes with a two-year part and labor warranty. The TFDR49DC-BL uses the world-famous Danfoss/Secop compressor for unsurpassed reliability, durability, and performance.

Designed for the open road. and originally designed for the Kenworth T680 and T700 models as well as Freightliner Cascadia.

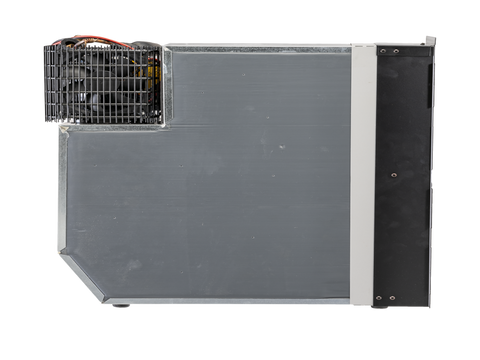

The fan-cooled compressor unit is integrated into the upper part of the refrigerator. installation frame/trim, adjustable thermostat, and interior light are all standard features.

Other Truckfridge models include;

CR49DC (12-24VDC)
CR49ACDC (12-24VDC, 110-220VAC)
TFDR49DC-BL (12-24VDC)

CR65DC (12-24VDC)
CR65ACDC (12-24VDC, 110-220VAC)
CR86DC (12-24VDC)
CR130DC (12-24VDC)
CR130ACDC (12-24VDC, 110-220VAC).

Product Features

  • TRUE 12Vdc compressor type refrigerator / freezer for superior performance
  • High efficiency Danfoss/Secop compressor minimizes power consumption
  • Average power consumption under 2 amp/hour
  • Super quiet operation
  • Will not kill your batteries (three level battery protection)

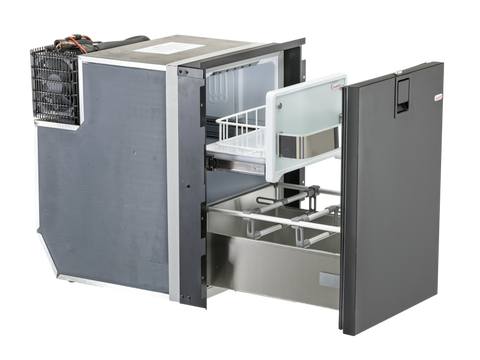

  • Sliding drawers for easy top access
  • Large storage volume
  • Separate fridge / freezer compartments
  • Installation frame, adjustable thermostat and interior light standard


Shore Power (110VAC)

The use of shore power eliminates the need for generators, solar power or running the vehicles engine to recharge the auxiliary deep cycle battery during long stop overs..

TFDR49DC-BL can alternatively be used in shore power applications where 110VAC power is available. Simply add a 12V battery charger always connected to the deep cycle battery. You can plug and unplug the battery charger without affecting the fridge. This is also a very cost effective alternative.

Truck Fridge

Designed for the open road. Ideally sized for Kenworth T680 and T700 models as well as FL Cascadia. (Cabinet opening should measure approximately 15” wide).

Van / RV Fridges / VW Westfalia

The TFDR49DC-BL is also ideal for many RV and van applications requiring no or minor alterations.




Size (Fridge) Exterior 20 1/2in(H) x 15 3/8in(W) x 20 1/2in(D)
520.7mm(H) x 390.5mm(W) x 520.7mm(D)
Size (Freezer) Internal 6 1/2in(H) x 11in(W) x 61/2(D)
165mm(H) x 279mm(W) x 165mm(D)
Gross Capacity 49 Litre / 1.73 cu. ft. / 43 Imp Qt
Freezer Capacity 7.33 Litre / .26 cu. ft.
Nominal Voltage 12-24VDC
Nominal Power Input 60 watt/hour (5 amp/hour
Average Consumption 24 watts/hour (2 amp/hour)
In-line fuse 15A (12VDC), 7.5A (24VDC)
Refrigerant R134a
Temperature Range +2oC to -7oC (35oF to 18oF)
Ambient Temperature Indel B Italy claims test to show that unit can maintain food safe temperatures (34-40F / 1-5C) at ambient temperatures up to 120F / 49C.
Air cooling Forced air with fan
EMC conformity Yes

Black front/trim, sliding drawer top opening, separate fridge / freezer compartments, Interior light, adjustable thermostat, low voltage cut-out.

Net weight (lbs) 55 lbs
Warranty Two (2) year parts and labour

Note. If in doubt about the model for your vehicle, always confirm by measuring the height, width and depth of the cabinet opening before ordering. Returns due to wrong model/measurements subject to a 25% restocking charge.

Please note that models, prices, and availability is subject to change without obligation or notice.

Disclaimer for custom installations* As all good cabinet makers know, never make the first cut on cabinets until you have the appliances in front of you. Screw heads, hinges, and door swings must always be taken into account. Failure to observe this information may result in ill fitting installations or additional costs to you. This is not considered a manufacturing or TruckFridge issue. Specifications may be subject to change without notice or obligation.
